Once the geometric and load characteristics of the structure have been defined, the Analysis menu commands allow you to select the type of seismic analysis (static or dynamic), the reference seismic code, the design code system (permissible stress or limit state), and other related parameters. Furthermore, from this menu, you can launch the elastic analysis and, if necessary, the nonlinear pushover or plastic adaptation analyses. The latter can only be activated after the reinforcement design and within the limit state design code system.

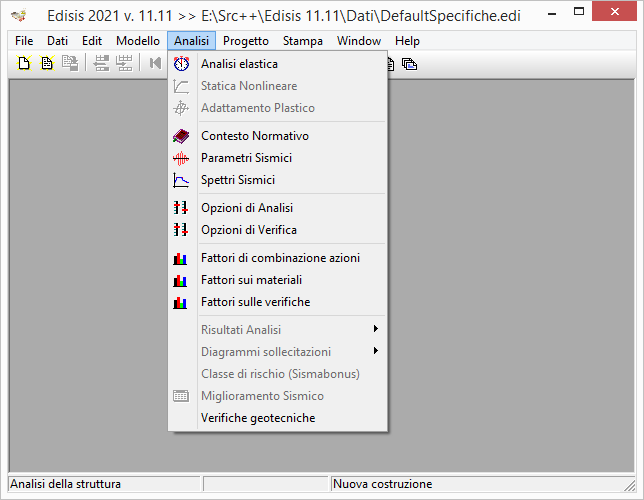

The Analysis menu options are as follows:

  • Elastic analysis
  • Nonlinear Statics
  • Plastic Adaptation
  • Regulatory Context
  • Seismic Parameters
  • Seismic Spectra
  • Analysis Options
  • Verification Options
  • Stock Combination Factors
  • Materials factors
  • Factors on checks
  • Analysis Results
    • Inter-storey stiffness
    • Total loads on the beams
    • Drains in the foundation
    • Beam Stresses
    • Pillar Stresses
    • Panel Stresses
    • Audience Solicitations
    • Check Movements
    • Check Scrolls
    • Pushover Curves
  • Stress diagrams
    • Beam stress diagrams
    • Column stress diagrams
  • Risk class (Earthquake bonus)
  • Seismic improvement
  • Geotechnical checks




Analysis Results and Stress Diagrams Submenu
